Silicon carbide ceramic clip strips
Alias: Porous fixing bracket snap
Description：

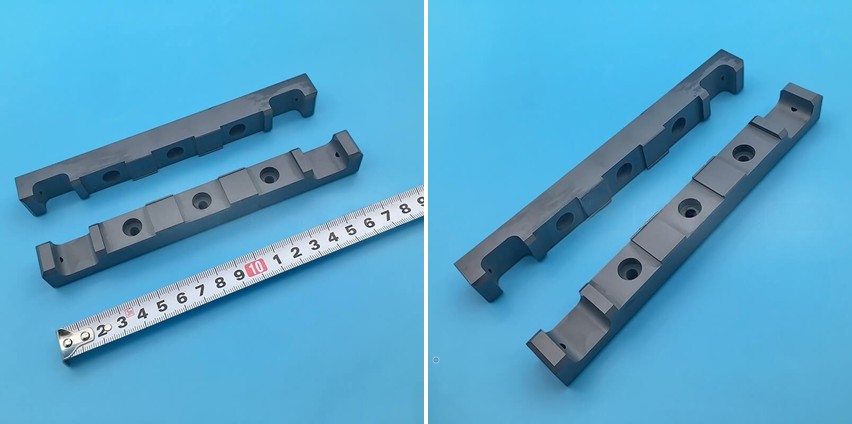

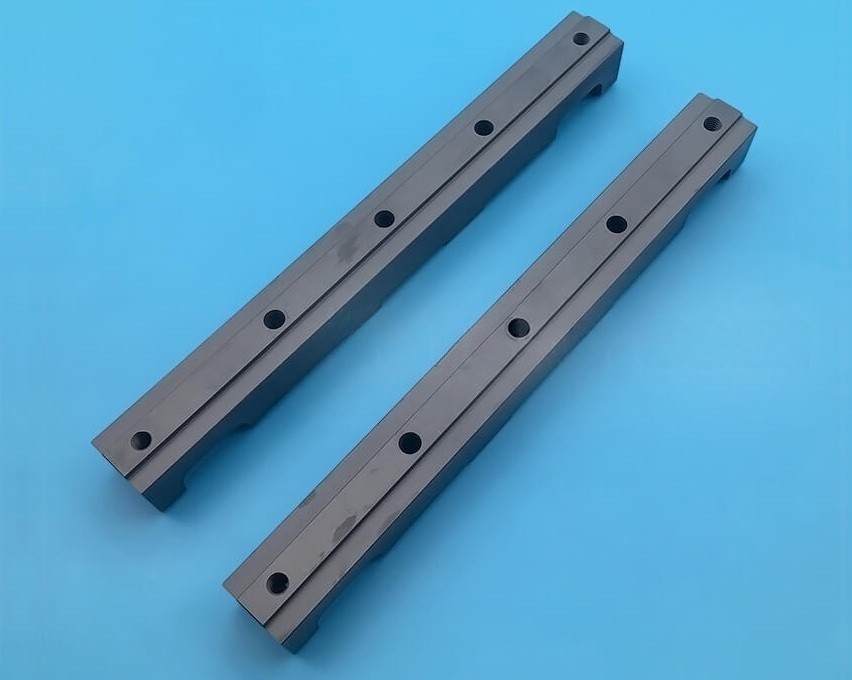

Customized silicon carbide (SiC) ceramic clip strips, also known as porous fixing bracket snaps. These ceramic clip strips have multiple holes and grooves for easy fixing and installation in various mechanical equipment. The high hardness and strength of silicon carbide ceramics enable these clip strips to withstand high pressure and high friction without deformation or damage during use, thereby extending the service life of the equipment.
Features:
Silicon carbide ceramic clip strips (Alias: porous fixing bracket snaps) are high-performance industrial components, especially suitable for high-demand machinery and industrial environments.
1. Structural design
With multiple holes and grooves, these clip strips can be easily installed and fixed to a variety of mechanical equipment, providing great installation flexibility and convenience.
2. Superior durability
The high hardness of silicon carbide (HRA93, 2100HV1) and strong mechanical properties (such as 400MPa flexural strength and 2600MPa compressive strength) enable the clip strip to withstand high pressures and frictions, enhancing durability and reliability.
3. Superior thermal performance
High thermal conductivity (100 W/m·K) combined with low coefficient of thermal expansion (4 x10-6K-1) ensures stability at extreme temperatures and reduces the effects of thermal stress.
4. Chemical and thermal stability
The chemical inertness and high-temperature stability of silicon carbide materials (which can be used in environments up to 1600°C) make them excellent in chemically corrosive or high-temperature environments.
Applications:
1. Mechanical seals and brackets
In high-speed, high-pressure mechanical systems, such as seals and bracket components for pumps and compressors, they provide the necessary support and fixation.
2. Abrasive treatment equipment
In grinding and polishing equipment that handles high-hardness materials, it is used as a wear-resistant component to improve the processing capacity and accuracy of the equipment.
3. High temperature industrial equipment
It is suitable for industrial applications that require resistance to high temperatures and thermal shocks, such as heat treatment furnaces and heat exchange system components.
4. Chemical and pharmaceutical equipment
Used in chemical processing and pharmaceutical production as a key component in resistance to corrosion and chemical reactions.
The unique design and excellent physical properties of silicon carbide ceramic clip strips make them invaluable in modern industry, especially suitable for use in demanding environments. These clip strips not only improve the operational efficiency and reliability of the equipment, but also greatly extend the maintenance cycle and service life of the equipment, making them ideal for high-precision and high-strength applications.
Product customization:
In the field of precision ceramic processing and customization, Fudong Machinery is committed to the production of various high-performance ceramic parts, including zirconia ceramics, silicon nitride, aluminum nitride and other products. These ceramic parts have excellent thermal stability, electrical insulation, high temperature stability and wear resistance, and are widely used in key fields such as aerospace, electronics, machinery, military industry, and automotive.
With its excellent performance and reliability, our products provide customers with key support and guarantees, helping them improve production efficiency and optimize product performance.
Non-standard parts customization, due to different requirements such as product size, material details, processing accuracy, etc., resulting in different costs such as material costs, processing costs, packaging logistics, etc. Please be sure to contact customer service when ordering, provide as much part information (drawings or samples, use environment, etc.) and your requirements (quantity, delivery date, etc.) as much as possible, and we will submit you a specific plan that meets your parts requirements, as well as a preferential quotation.
